- Available: 2

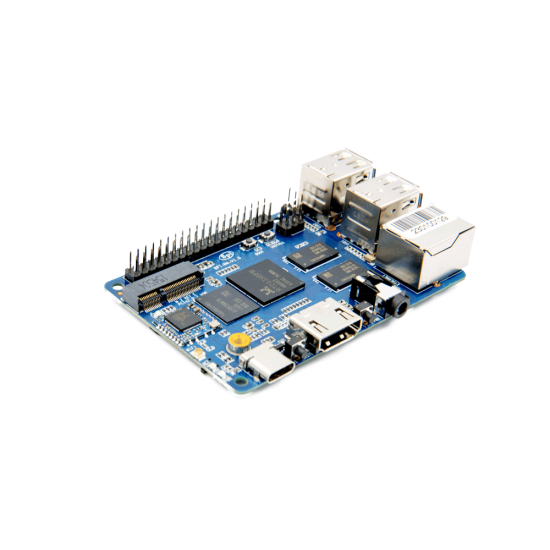

- Model: BPI-M4
BPI-M4 Specification
CPU : Realtek RTD1395 ARM
Cortex-A53 Quad-Core 64 Bit
GPU: Mali 470 MP4 GPU
OpenGL ES 1.1/2.0
Memory: 1 GB DDR4 (optional 2
GB)
Storage: 8G eMMC flash onboard
MicroSD slot supports up to 256GB expansion
Network: 10/100 Mbit/s
Ethernet,Wi-Fi 802.11 b/g/n/AC,Bluetooth 4.2
Video Output: HDMI port and
multi-channel audio output support 1080P H.264 H.265 2K/4K
Audio Output: 3.5mm jack and HDMI
USB ports: 4 x USB 2.0 ports,1 x
USB 2.0 TYPE C
PCIE: M.2 Key E slot PCIE
2.0 and USB 2.0
GPIO: GPIO (x28),Power
(+5V, +3.3V and GND),UART, I2C, SPI or PWM
Power Input: 5 volt @2A via Micro
USB (TYPE C) or PoE support
Size&Weight: 92x60mm, 48g
OS: Android and Linux
