- Model: Micro SD Card Adapter Module

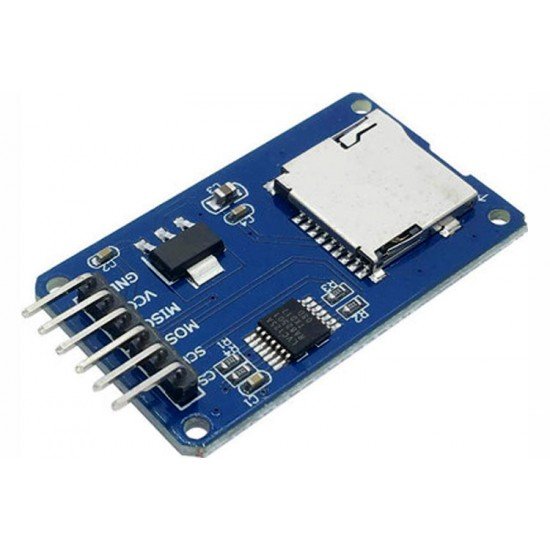

SD cards or Micro SD cards are widely used in various applications, such as data logging, data visualization, and many more. Micro SD Card Adapter modules make it easier for us to access these SD cards with ease. The Micro SD Card Adapter module is an easy-to-use module with an SPI interface and an on-board 3.3V voltage regulator to provide proper supply to the SD card.
Features and Specifications of Micro SD Card Adapter Module
This section mentions some of the features and specifications of the Micro SD Card Adapter Module.
- Operating Voltage: 4.5V - 5.5V DC
- Current Requirement: 0.2-200 mA
- 3.3 V on-board Voltage Regulator
- Supports FAT file system
- Supports micro SD up to 2GB
- Supports Micro SDHC up to 32GB

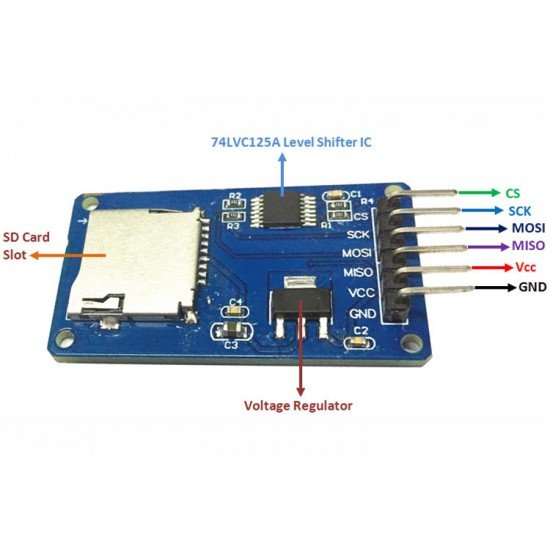

Pin Configuration of Micro SD Card Adapter Module
The module contains 6 pins for power and communicating with the controller. The table below describes the pin type and role of each pin on the module.
Pin Type | Pin Description |
GND | Ground |
VCC | Voltage Input |
MISO | Master In Slave Out(SPI) |
MOSI | Master Out Slave In(SPI) |
SCK | Serial Clock(SPI) |
CS | Chip Select(SPI) |
Connecting Micro SD Card Adapter Module to an MCU/MPU
A Micro SD Card adapter module can be easily connected to an MCU/MPU. Since the module communicates via the SPI protocol, we need to connect the MISO, MOSI, SCK, and CS of the module to the MCU’s.
The image can be seen as a reference and the connections can be made based upon that. Along with the SD card holder, the module has a 3.3V voltage regulator, along with a 74LVC125A Level shifter IC.
Applications of Micro SD Card Adapter Module
Here are some of the applications of the Micro SD Card Adapter Module.
- Data loggers
- Audio, Video storage, and Visualization
- Expandable memory
