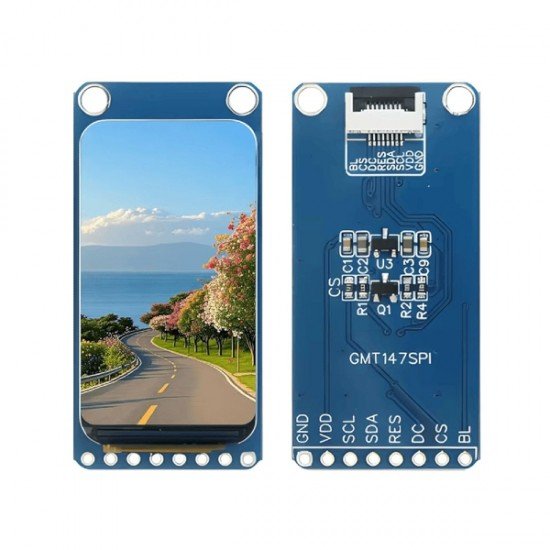

1.47 Inch IPS LCD Display Module (GMT147SPI, 172x320 Resolution)

Vibrant Visuals in a Compact Form: 1.47" SPI LCD Module

The GMT147SPI is a compact, high-definition 1.47-inch LCD display module designed for projects that require a sharp, colorful interface within a small footprint. Utilizing IPS (In-Plane Switching) technology, this display offers superior color reproduction and much wider viewing angles compared to standard displays, ensuring your data or graphics remain visible from almost any direction.

With a unique rectangular resolution of 172x320 pixels, this module provides a high pixel density that is perfect for displaying detailed icons, sensor data, or mini-graphs. Its slim, elongated design makes it an ideal choice for wearable technology, handheld devices, and secondary status screens for PC or server racks.

Key Features:

• Crisp IPS Panel: High-quality display with vibrant colors and wide viewing angles for maximum readability.

• High Resolution: The 172 x 320 resolution provides a clear and sharp display for its small size.

• Standard SPI Interface: Easily integrates with a wide variety of microcontrollers, including Arduino, ESP32, STM32, and Raspberry Pi, using only a few pins.

• Versatile Mounting: Includes through-hole mounting points at all four corners for secure installation in custom enclosures.

• Built-in Logic Level Shifting: The board includes integrated circuitry to ensure stable performance and compatibility with common logic levels.

Technical Specifications:

• Model: GMT147SPI

• Screen Size: 1.47 Inches

• Display Type: IPS LCD

• Resolution: 172 (H) RGB x 320 (V)

• Interface: 4-Wire SPI

• Pin Definition: GND, VDD, SCL, SDA, RES, DC, CS, BL (Backlight Control)

• Driving IC: ST7789V3 (Standard high-performance display driver)

• Operating Voltage: 3.3V

Ideal For: Smart Watches & Wearables, IoT Sensor Displays, Portable Instrumentation, DIY Electronics Projects, and Embedded Status Panels.
